E-BIKE CHARGER
MPC-BOS-4204-BS3
Input: 100-240V ~ 50-60Hz (Global Voltage)
Output Voltage: 42V (Required for 36V Nominal Batteries)
Output Current: 4.0A (Fast Model)
Technical Specifications
| Input | 100-240V ~ 50-60Hz (Global Voltage) |
| Output Voltage | 42V (Required for 36V Nominal Batteries) |
| Output Current | 4.0A (Fast Model) |

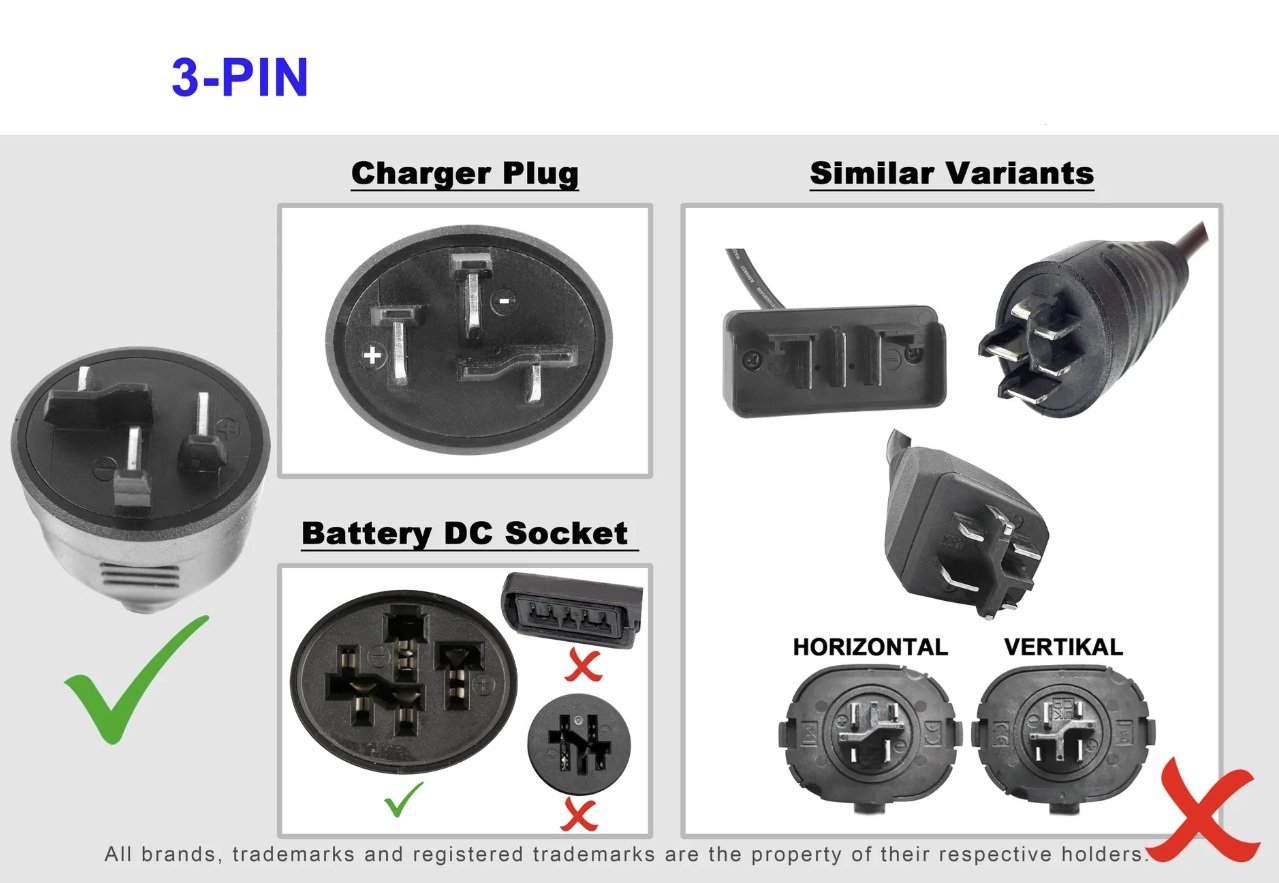

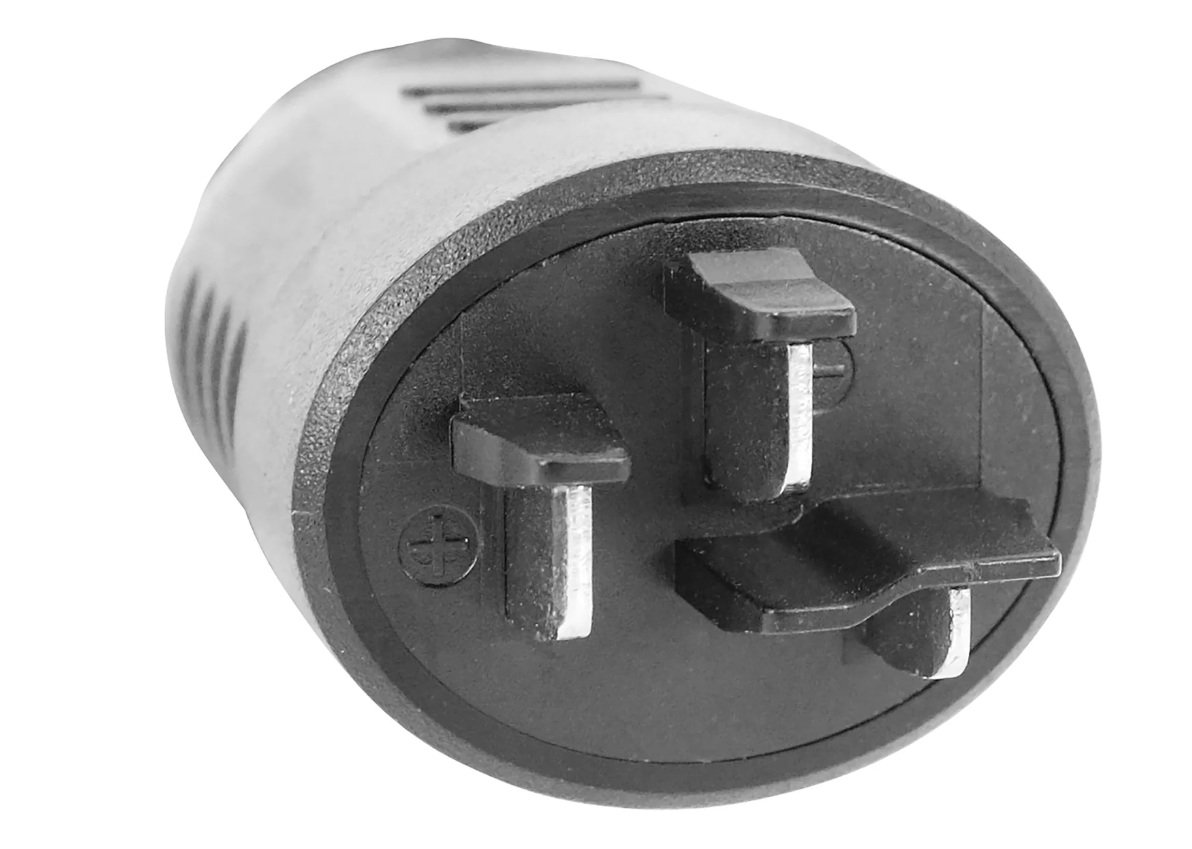

| Plug Type | Oval Active/Performance Plug |
| Color | Black |
Compatibility
- 1. Supported Bosch Systems: Suitable for charging all Bosch 36V batteries from the:
- Active Line
- Active Line Plus
- Performance Line
- Performance Line CX
Compatible Models
- 3. Compatible E-Bike Models (Examples): Fits many bikes equipped with the Bosch system, including:
- Gazelle: Ultimate T2i HM, Ultimate C1i HM, Ultimate T1i HM Orange C330 HM, Orange CX HM, Orange C7+ HM Arroyo C8 HM Charmonix T10 HM Cityzen Speed, CityZen C8 HM
- RIXE: Montpellier B9 Bordeaux B7 / B7R HS
- Riverside: 500 Perf Line, City Perf Line
Part Numbers
- 2. Replaces Bosch Part Numbers: Compatible with chargers and batteries bearing these numbers (and more):
- Main Reference: 0 275 007 918 / Type Plate: 36-6/230
- Compatible Series: 0 275 007 507, 0 275 007 509, 0 275 007 510, 0 275 007 511, 0 275 007 512, 0 275 007 513, 0 275 007 514, 0 275 007 515, 0 275 007 518, 0 275 007 522, 0 275 007 525, 0 275 007 526, 0 275 007 529, 0 275 007 530, 0 275 007 531, 0 275 007 532, 0 275 007 533, 0 275 007 534, 0 275 007 535, 0 275 007 536, 0 275 007 538, 0 275 007 539, 0 275 007 540, 0 275 007 543, 0 275 007 544, 0 275 007 547, 0 275 007 548, 0 275 007 549, 0 275 007 550.
